Wolf River Coil SB 1000 Platinum - 213" Whip Antenna Tuning Guide W0DHZ - Dale Henninger

-

 Love my Wolf Rive Coil Antenna for POTA use but I haven’t marked it up (yet) to facilitate quick band changes while out in the field.   Here are some notes to use as a starting point based on the work by W0DHZ Dale Henninger:


102″ Telescoping Whip

BandWhip LengthCoil Position
6mOnly 1st section of whip extendedNo Clicks – Top of Coil
10m3 sections out + 6″ of 4th sectionNo Clicks – Top of Coil
40mAll sections out3 Fingers Down

213″ Telescoping Whip

BandWhip LengthCoil Position
10m8 sections out + 1″ of 9th sectionNo Clicks – Top of Coil
20m9 sections out + 13″ of 10th sectionNo Clicks – Top of Coil
40mAll sections extended16 clicks down

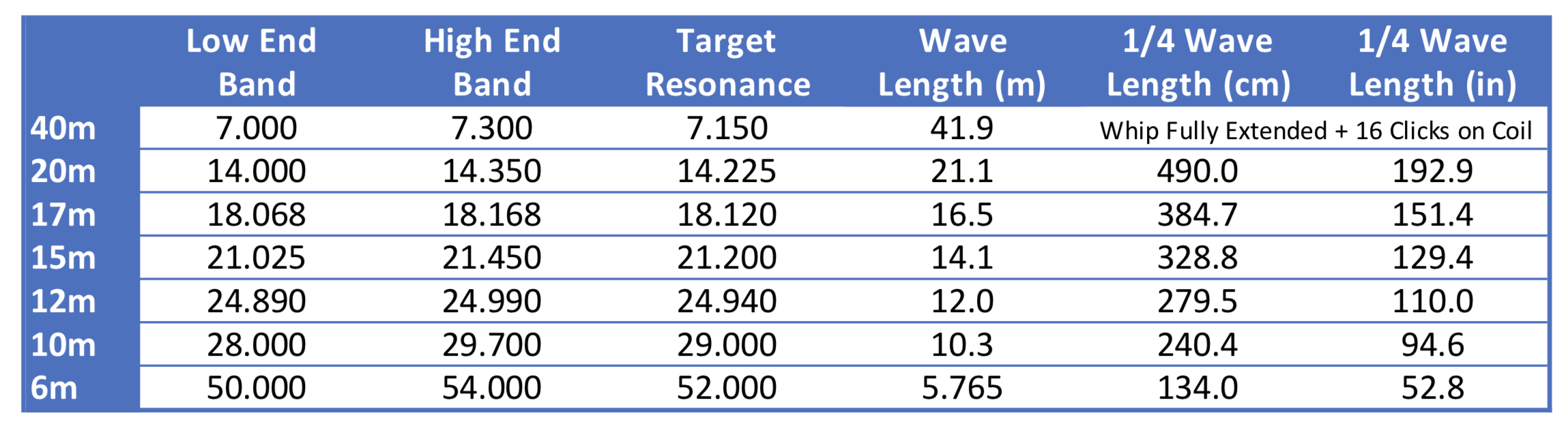

Reminder to subtract the length of the Wolf River Coils SB-1000 coil from the 1/4 Wave lengths above.


http://www.w0dhz.com/wp-content/uploads/2021/08/WolfRiver-SB1000-213inWhip-Tuning-Spreadsheet.pdf
